How does rim size affect your vehicle?

The specifications for OTR (off-highway) rims are more complex than those for standard automotive rims because they must withstand significant loads and harsh operating environments. Rim specifications are crucial parameters that influence vehicle performance, safety, and aesthetics. These specifications collectively determine whether the rim can be properly installed on the vehicle and how it will affect the vehicle's driving characteristics.

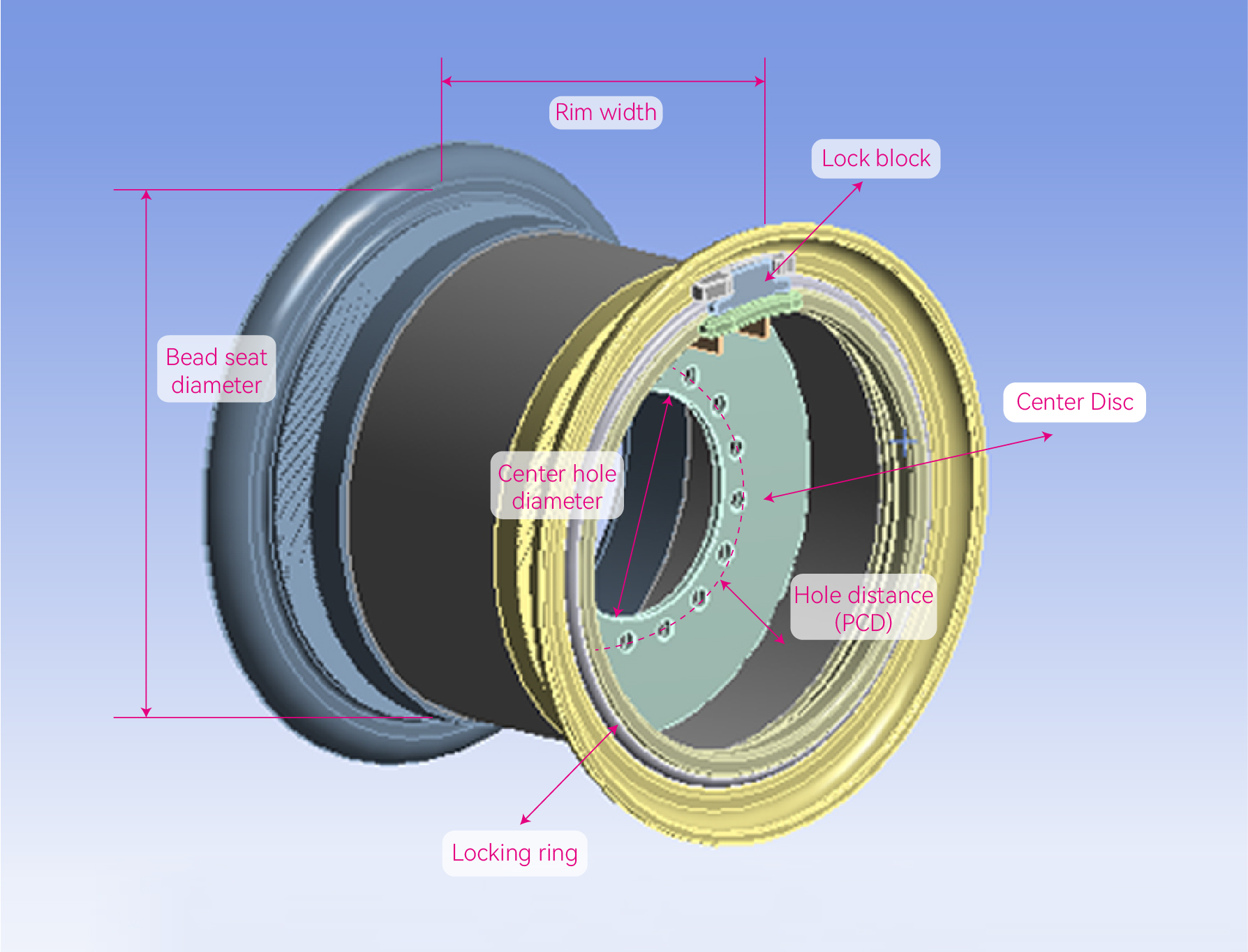

The following are several key parameters in rim specifications and their functions:

1. Rim size

The diameter of a rim is usually measured in inches. For example, an 18-inch rim is 18 inches in diameter . The rim diameter directly determines the size of tire you can fit.

Larger diameter rims usually mean thinner tire sidewalls , which provide a clearer road feel and better handling, but may reduce ride comfort and make the tire more susceptible to damage on bumpy roads.

Smaller diameter rims are suitable for thicker sidewalls, which can provide better cushioning and a more comfortable ride, but the handling is relatively poor.

2. Rim width

Rim width is also measured in inches, usually expressed as "J." For example, a 7.5J rim is 7.5 inches wide. The rim width must match the tire width. If the rim is too wide or too narrow, the tire will not fit properly or its performance will be affected.

Matching the right tire rims can ensure that the tire tread can contact the ground evenly and provide the best grip.

A rim that is too narrow will cause the center of the tire tread to bulge, reducing grip and potentially making the tire unstable when cornering at high speeds. A rim that is too wide will cause the tire shoulder to stretch, also affecting grip and potentially increasing the risk of tire and rim damage.

3. Rim center hole diameter

The center hole is the hole in the center of the rim that is used to center the axle. Its diameter is measured in millimeters. It ensures that the rim is precisely aligned with the axle and prevents wobbling during driving.

of the right size fits tightly with the axle, ensuring that the rim is installed correctly and smoothly, avoiding unbalanced shaking of the wheel at high speeds.

If the center hole is too large, the rim cannot be accurately positioned. Although this can be compensated by a hub ring, it may still cause wheel vibration if it is not installed properly.

4. Offset

Offset, also known as ET, is the distance between the rim's mounting surface and the rim's centerline. It's measured in millimeters and can be positive, negative, or zero. Offset determines whether the rim sits more inward (closer to the car body) or outward (protruding) when installed.

A large ET value (positive offset) causes the rim to be further inward, potentially causing the rim and tire to scrape against the vehicle's suspension or brake calipers. A small ET value (negative offset) causes the rim to be further outward, widening the vehicle's track and improving cornering stability. However, if the ET value is too small, the tire may protrude from the vehicle, increasing the risk of mud and water splashing or scraping against the wheel arch.

5. Hole Distance (PCD)

The hole spacing, also known as the pitch diameter, is the diameter of the circle formed by the bolt holes on the rim. For example, 5x114.3 indicates five bolt holes with a pitch of 114.3 mm. This is the most basic parameter for ensuring that the rim can be installed on the vehicle.

The hole spacing must match the bolt hole position on the vehicle's wheel hub exactly, otherwise it will not fit at all. This is the first parameter to be confirmed when modifying the rim.

These specifications are interrelated to ensure the perfect fit between the tire and the vehicle, improving load-bearing capacity, operational safety and economy.
